Flexible

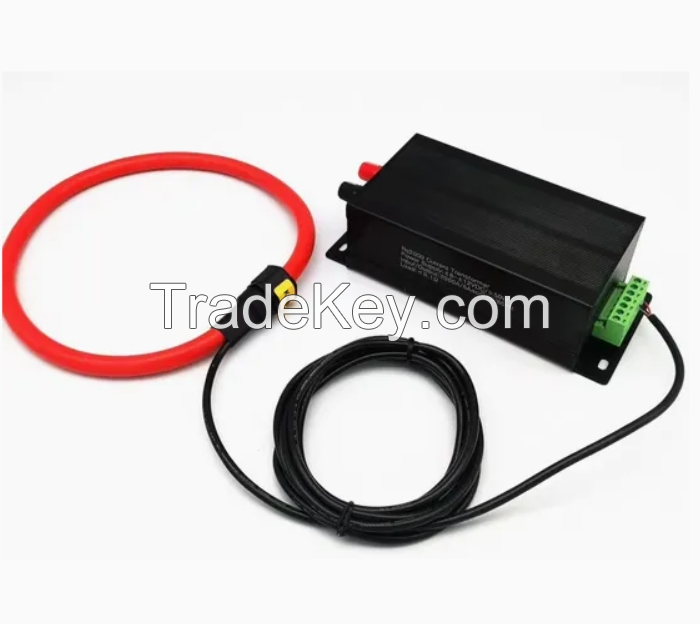

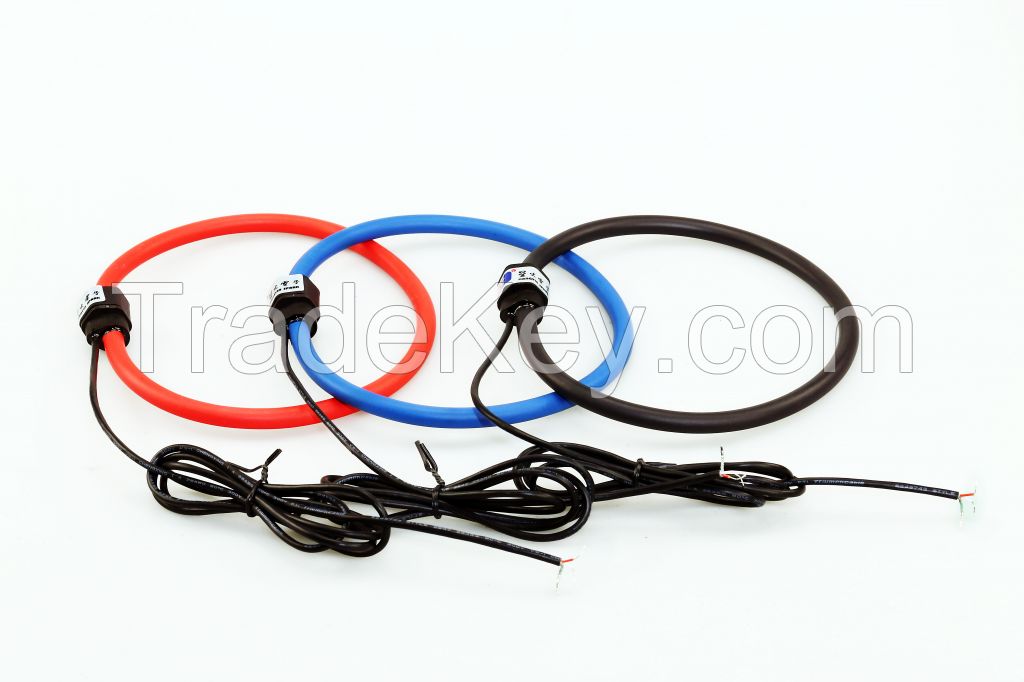

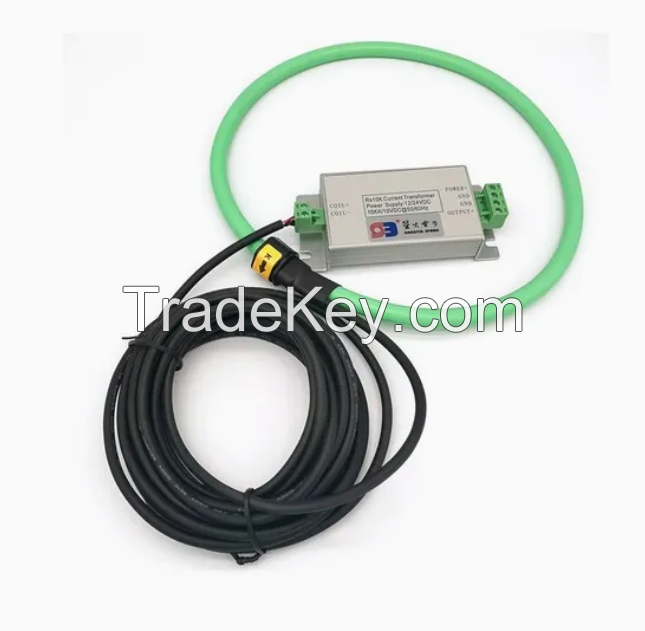

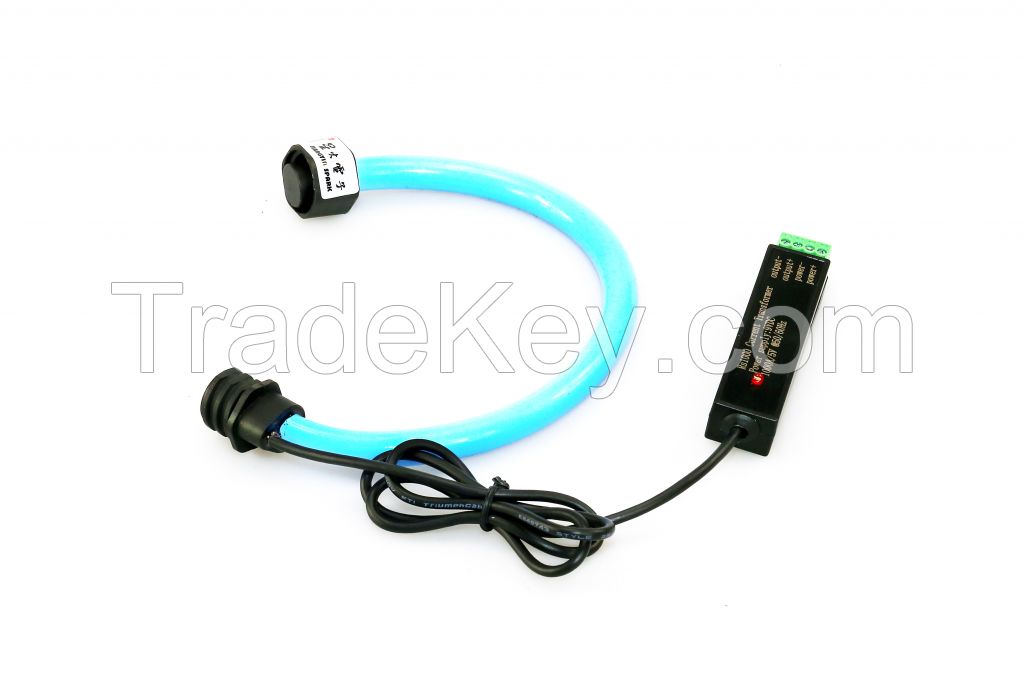

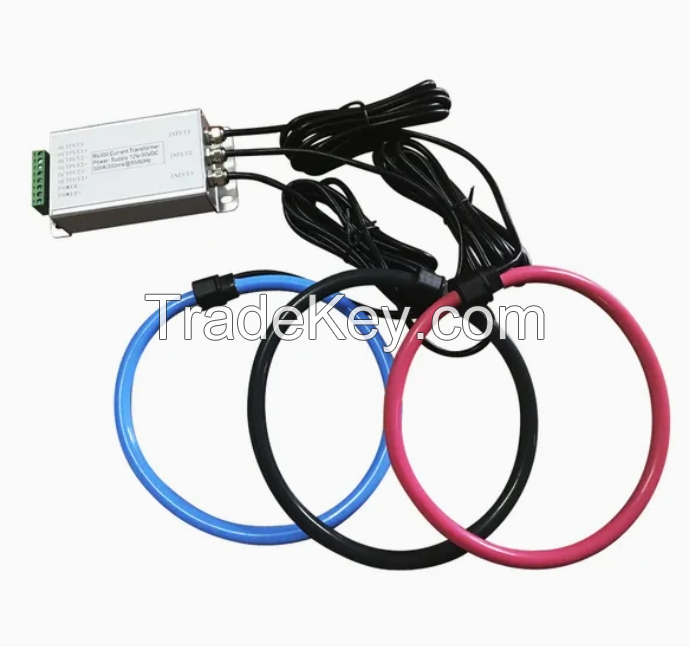

Rogowski Coil current sensor
Split Rogowski Coil current sensors are designed for fast and easy
installation on existing primary conductors/ BUS bars. The split
design permits non-contact AC current or current pulse measurement
without requiring that the primary conductor be taken offline and
disconnected for the current sensor installation. This method
provides for the safe, easy and portable measurement of
current.
A current sensor that is based upon the Rogowski Coil principle
offers significant advantages over the standard magnetic core
current transformer products. Specifically, since the sensor does
not incorporate a magnetic core, magnetic core saturation (the
point where incremental increases in magnetic flux are not
reflected in proportional increases in secondary signal outputs) is
avoided
| Rated current (rms) | 10A-100KA |
| Output | mV (without integrator) |
| 0-5A AC(with integrator) | |
| Power supply | 9V-24V |

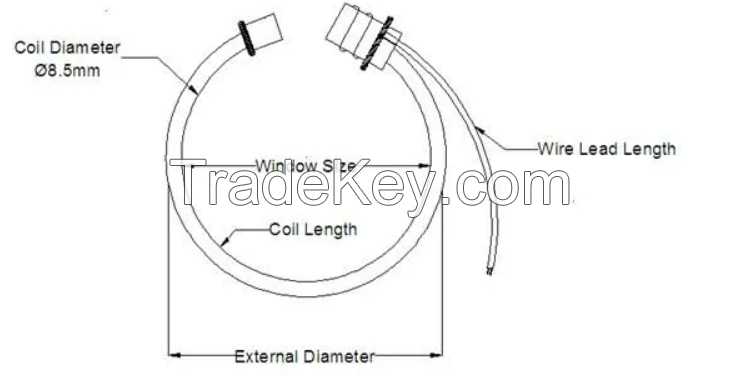

| Coil length | 20cm-200cm |
| Tube | UL material |
| Wire lead | Shielded cable |
| Isolation voltage | 3500V |
| Operating temperature | -25ºC-+70ºC |
| Frequency | 50Hz-60Hz |
| Accuracy | ±1% |
