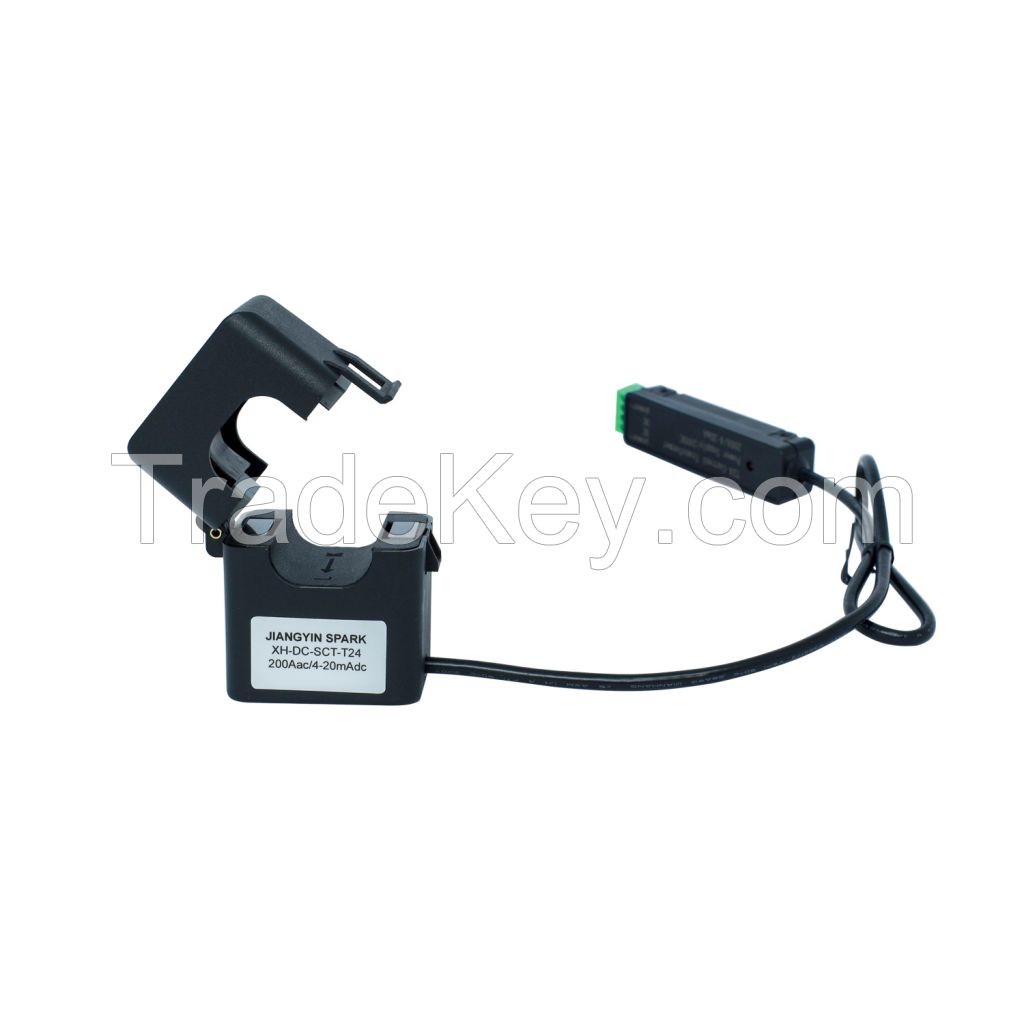

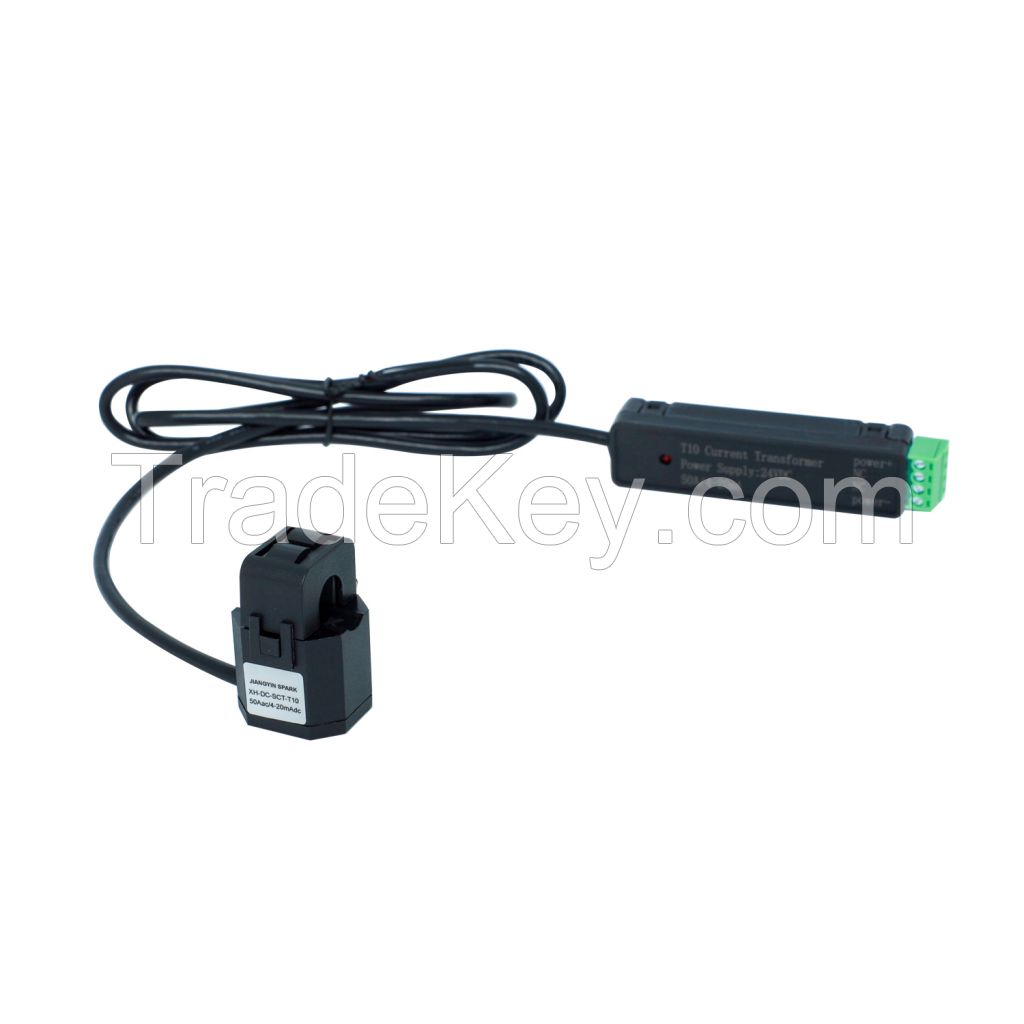

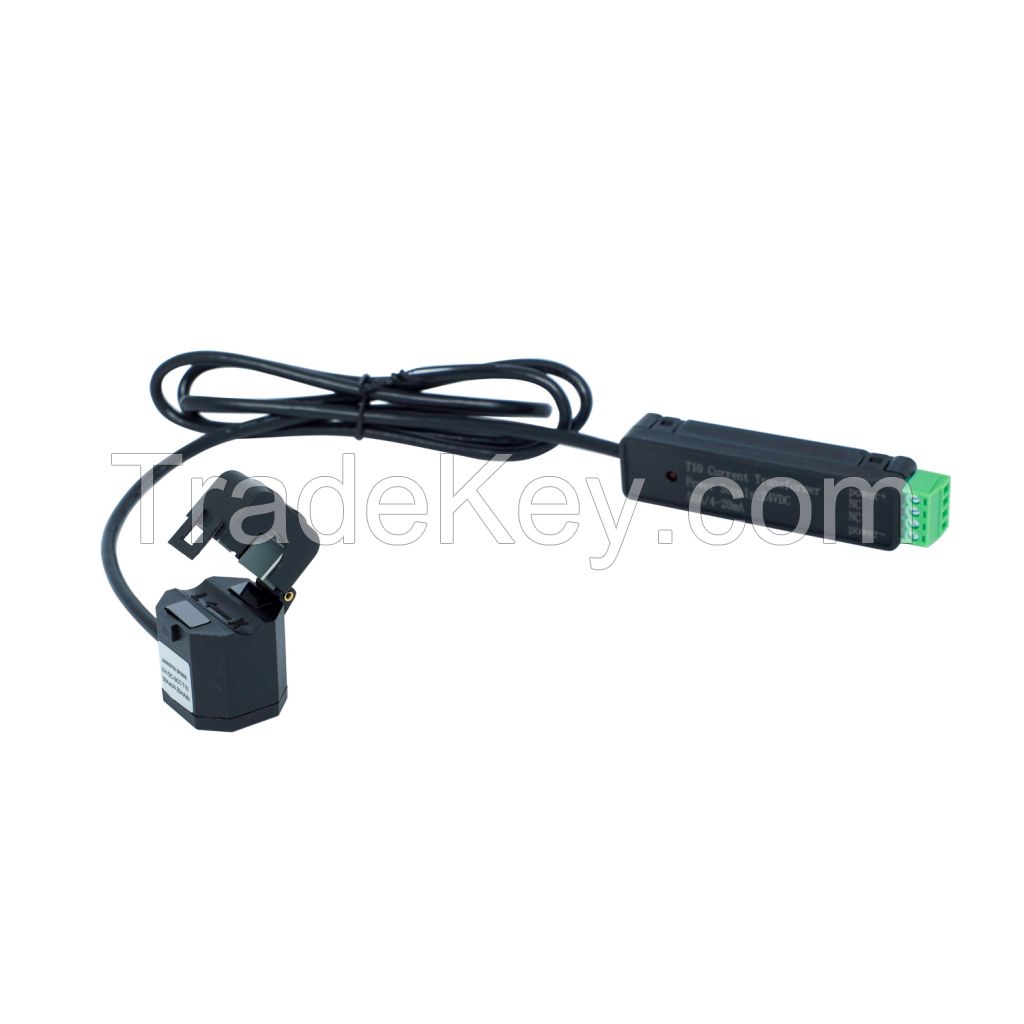

4-20mA Sensor DC-T16 Split Core Current Transformer for EV Charging

FOB Price

Get Latest Price

8 ~ 10 USD / Piece ( Negotiable )

|

1 Piece Minimum Order

Country:

China

Model No:

XH-SCT-T16

FOB Price:

8 ~ 10 USD / Piece ( Negotiable ) Get Latest Price

Place of Origin:

China

Price for Minimum Order:

8 per Piece

Minimum Order Quantity:

1 Piece

Packaging Detail:

Cartons

Delivery Time:

3-7 days

Supplying Ability:

20000 Piece per Week

Payment Type:

T/T, L/C

Product Group :

split core CT/current transformer

Contact Now
Jiangyin Xinghuo Deyue Technology Co., Ltd

Jiangyin Xinghuo Deyue Technology Co., Ltd

China

8888 Trust Points
1st Year

Contact Person Mr. Jay

No.68, Tian'an Cyberpark, No.55 Changshan Avenue, Jiangyin, Wuxi, Jiangsu

Contact Now

Product Specification

  • Certifications:UL, CE, RoHS
  • Accuracy:0.5, 1.0 Class
  • Weight:100g
  • Wire Cable:Twist, Sheath or Others

Product Description

Split core DC current sensor 4-20mA DC secondary

Specifications
Input current: 50A AC
Output Signal: 4-20mA DC
Measurement Accuracy: +/- 2%
Linearity: +/- 2%
Temperature drift: < 5%
Auxiliary power supply: DC15-24V
Maximum Output Signal: 4-20mA
Operating Temperature: -30° C to +65° C
Storage Temperature: -40° C to +85° C
Operating Humidity: 10 to 95 %RH non-condensing

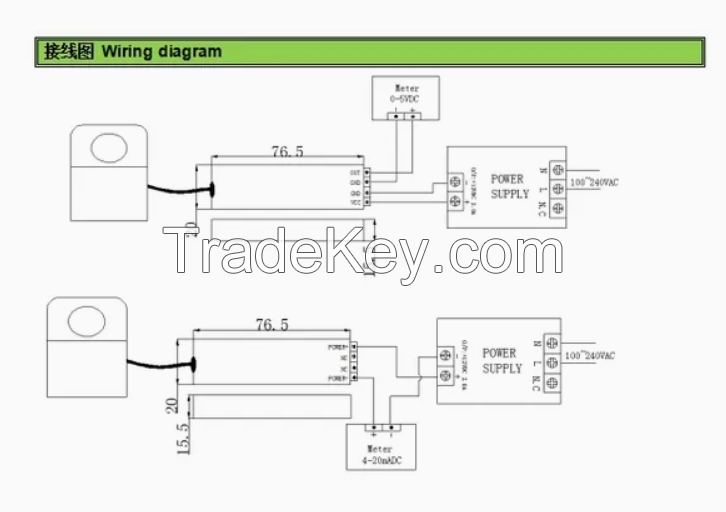

Storage Humidity: 10 to 95 %RH non-condensing image

Current range(AC) DC-T10 DC-T16 DC-T24 DC-T36 DC-T50 A
5-80 10-120 10-300 10-500 10-1000
 Measure range 1% - 100% %
 Power frequency 45-65 Hz
Output 0-5VDC 0-10VDC 4-20mADC Ω
Load ≥100K ≥100K ≤500
Supply voltage 12/24V V
Power Consumption < 40 mA
Offset drift mV/ºC
Accuracy ≤1 %
Linearity                         ≤1 %FS
Response time                         ≤20 ms
Galvanic isolation AC,1min                 10 KV
Isolation resistance

Country: China
Model No: XH-SCT-T16
FOB Price: 8 ~ 10 / Piece ( Negotiable ) Get Latest Price
Place of Origin: China
Price for Minimum Order: 8 per Piece
Minimum Order Quantity: 1 Piece
Packaging Detail: Cartons
Delivery Time: 3-7 days
Supplying Ability: 20000 Piece per Week
Payment Type: T/T, L/C
Product Group : split core CT/current transformer
