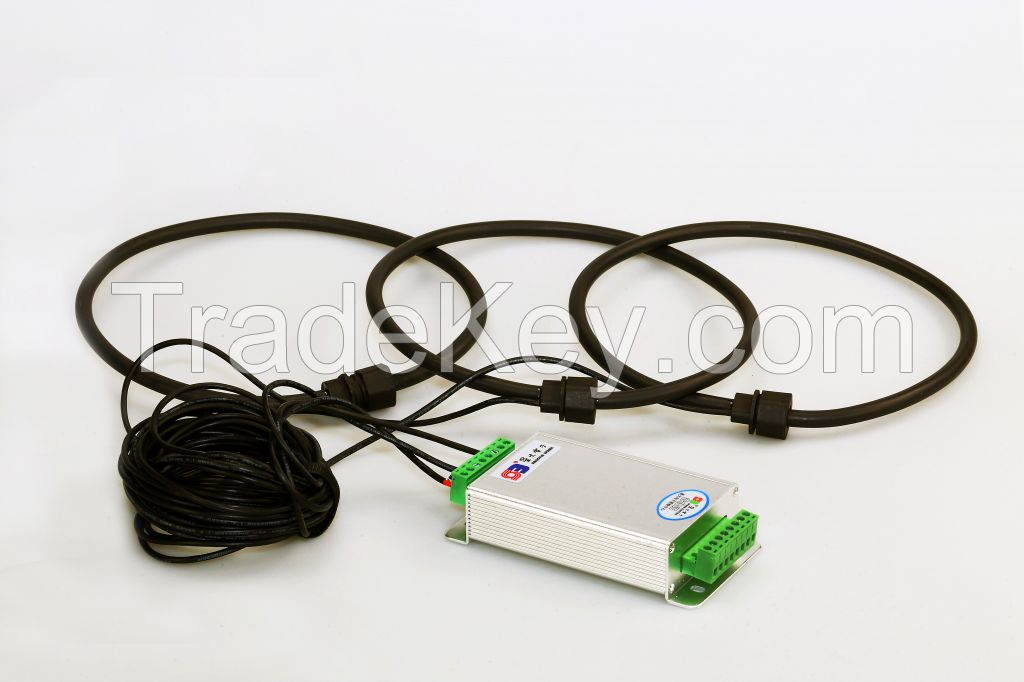

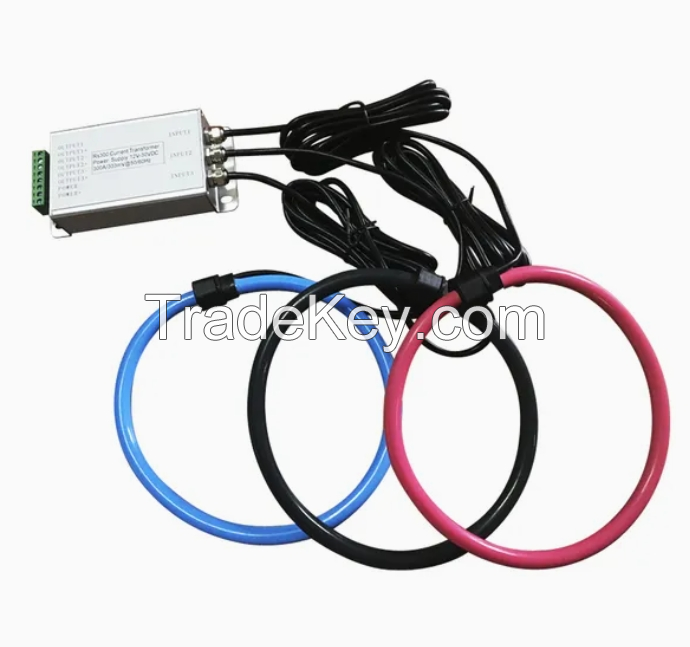

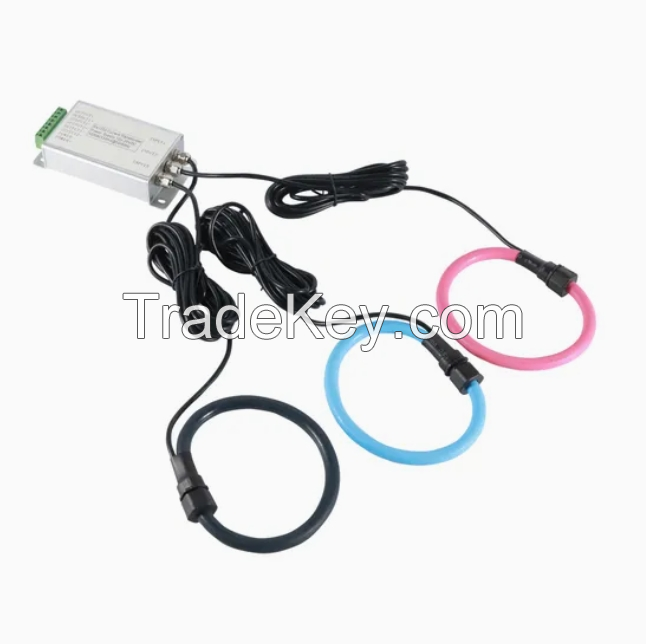

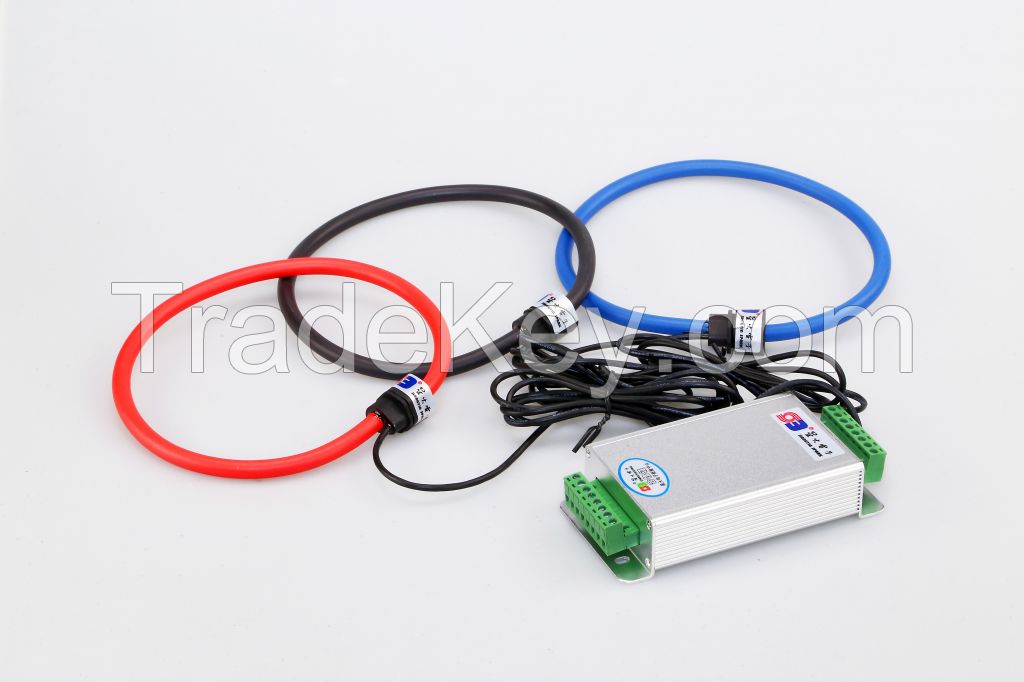

3 Phase Flexible Rogowski Coil High Accuracy 0.333V

FOB Price

Get Latest Price

10 ~ 90 USD / Piece ( Negotiable )

|

1 Piece Minimum Order

Country:

China

Model No:

RSCT

FOB Price:

10 ~ 90 USD / Piece ( Negotiable ) Get Latest Price

Place of Origin:

China

Price for Minimum Order:

10 per Piece

Minimum Order Quantity:

1 Piece

Packaging Detail:

Cartons

Delivery Time:

3-7 Days

Supplying Ability:

20000 Piece per Week

Payment Type:

T/T, L/C

Product Group :

Rogowski Coil

Contact Now
Jiangyin Xinghuo Deyue Technology Co., Ltd

Jiangyin Xinghuo Deyue Technology Co., Ltd

China

8888 Trust Points
1st Year

Contact Person Mr. Jay

No.68, Tian'an Cyberpark, No.55 Changshan Avenue, Jiangyin, Wuxi, Jiangsu

Contact Now

Product Specification

  • Accuracy Grade: 1.0G
  • IP Rating: IP67
  • Certification:CE
  • Output:0-0.333V AC or 0-5V AC

Product Description

Product Description
Specifications Of 3 Phase Flexible Rogowski Coil
Rogowski coil sensor
1.Coil length 0.2m-2m
2. current 100A-100KA
3. Output 0-0.333V AC or 0-5V AC
4.Accuracy 1%

Details Of 3 Phase Flexible Rogowski Coil
Capable of accommodating a range of primary conductor sizes.
Characterized by high sensitivity, accuracy, linearity, minimum phase shift.
Suitable for harsh operating environments (temperature, humidity, EMI).
Current Range: 100A to 100kA
Accuracy: < 1%
Phase Shift: < 1 degrees at 50/60Hz (< 0.5 degrees typical) /li>
Linearity: ±0.2% from 10% to 100% of rated primary current
Primary Conductor Position Sensitivity: ± 2% maximum
Influence of External Field: ± 1.5% maximum
Coil Working voltage: 1000VRMS or 1000VDC
Coil Dielectric Surge Withstand: 5kVRMS for 1 minute
Operating temperature: -20ºC to +60ºC
Leads: Shielded cable, or as per customer need

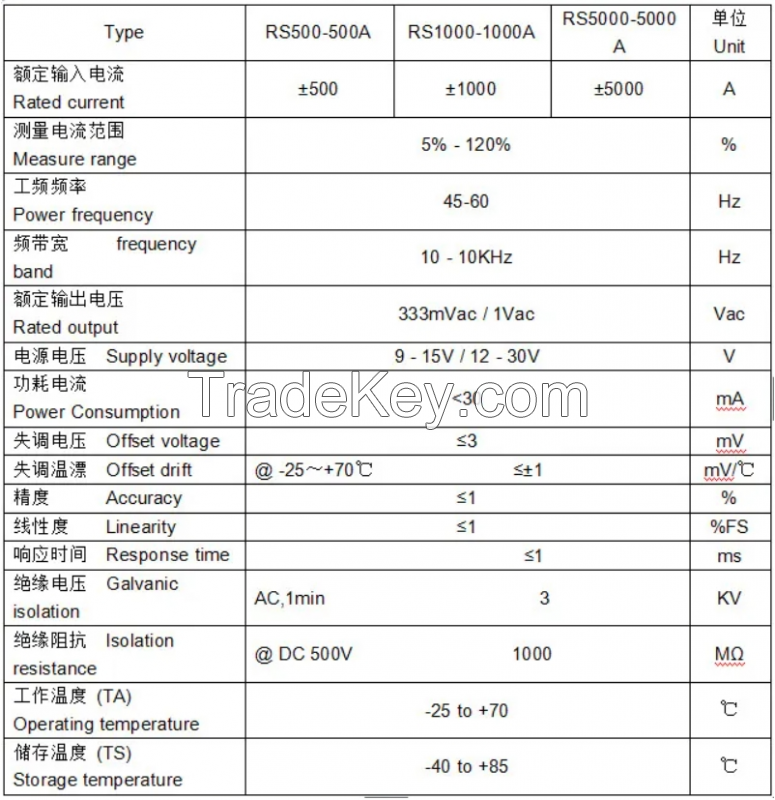

Electrical Data
